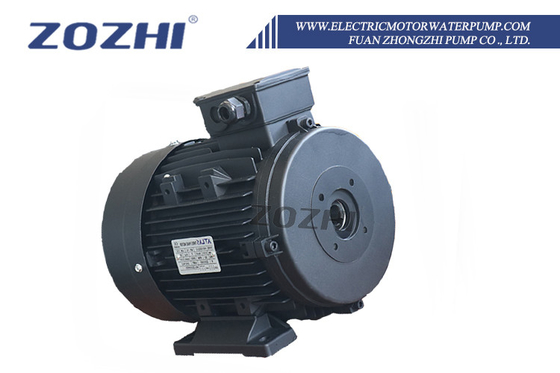

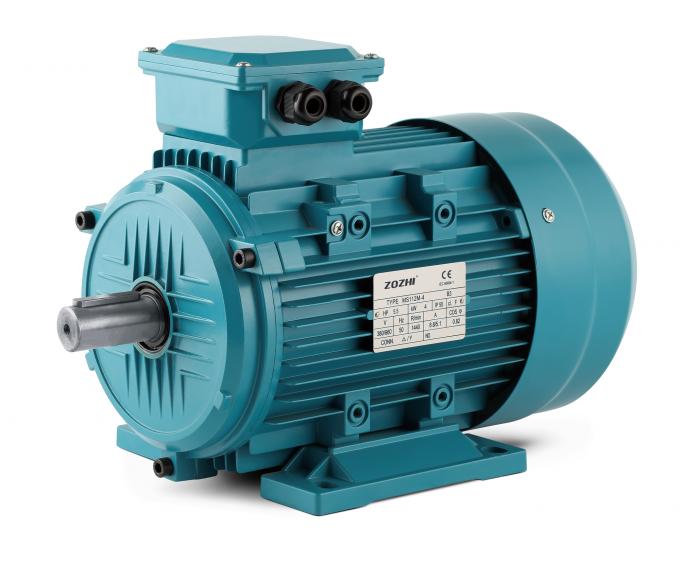

Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump

  • Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump
  • Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump
Place of Origin CHINA
Nom de marque ZOZHI
Certification CE,CCC,ISO9001
Model Number HS112M2-4
Minimum Order Quantity 2pieces
Prix USD155-170piece
Packaging Details CTNS/Veneer case
Delivery Time 14work days
Payment Terms T/T, L/C
Capacité d'approvisionnement 10000 pièces par30 jours

Contactez-moi pour des échantillons gratuits et des coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez des inquiétudes, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Laisser un message
Description de produit



Product Description

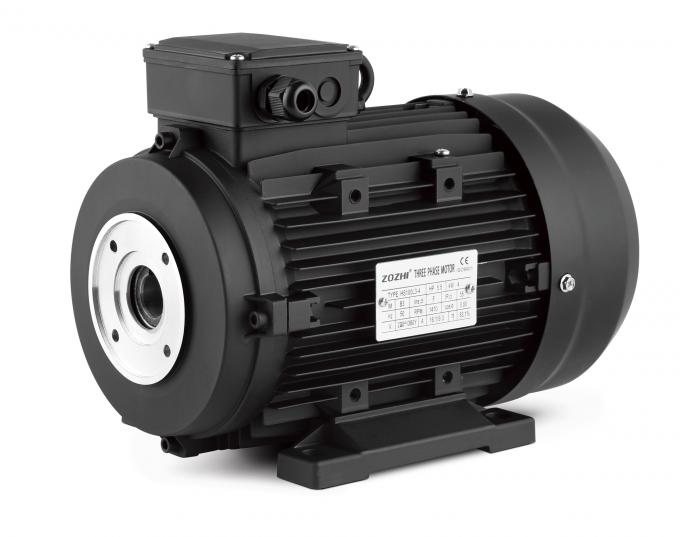

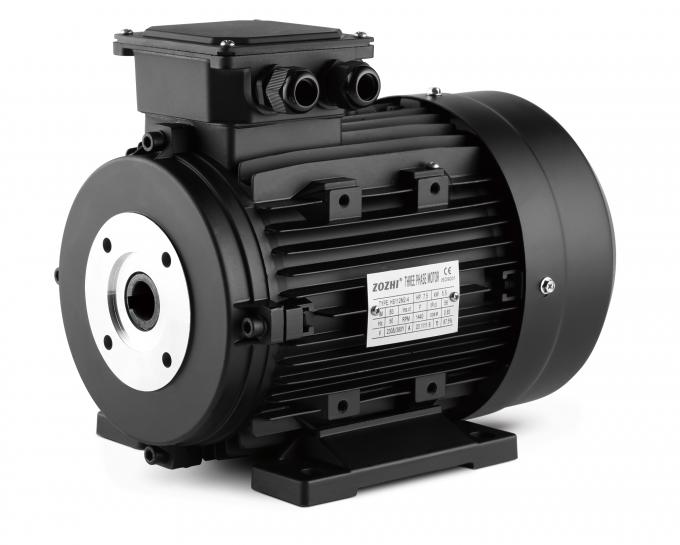

ASYNCHRONOUS HOLLOW SHAFT MOTOR

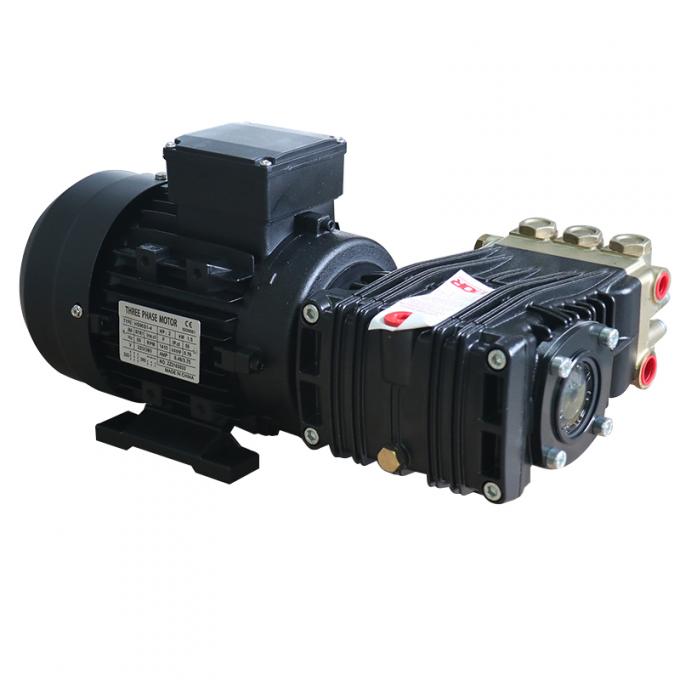

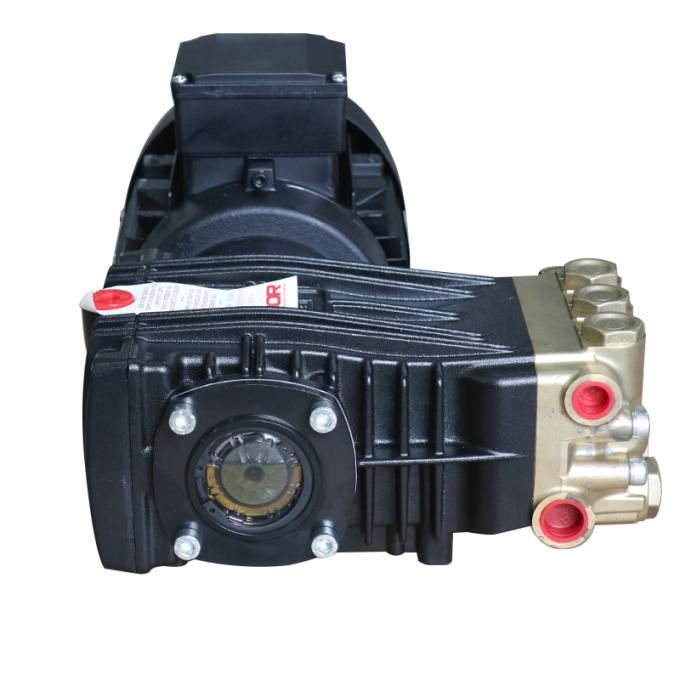

The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution
Product name
Hollow shaft electric motor HS112M2-4
Motor housing
Aluminum
Power
5.5KW/7.5HP
Installation
B3 Hollow shaft 24mm
Flange size
B3 87/61mm or 75/90mm
Bearing
C&U
Shaft
C#45
Insulation
Class F
Protection
IP55
Voltage/Frequency
Three phase 380V
OR other request
Speed
1400rpm
Application
Interpump
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 0
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 1

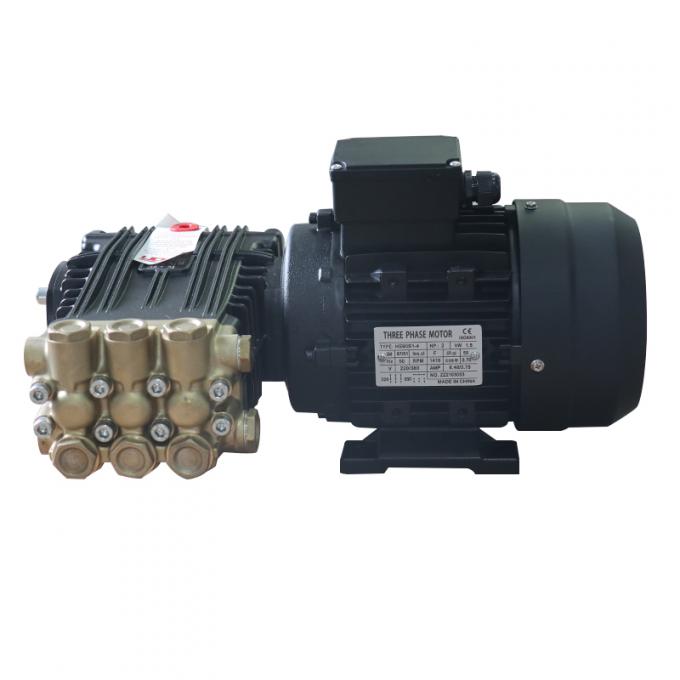

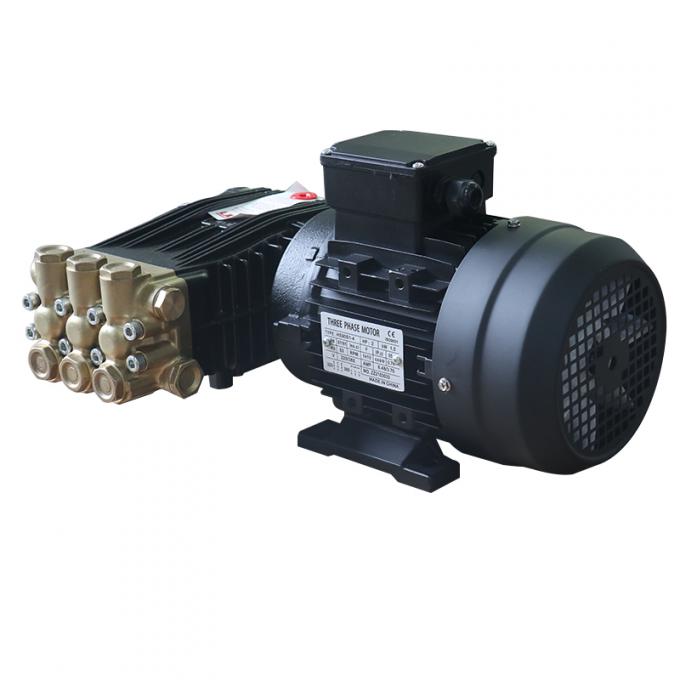

Application
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 2
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 3
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 4
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 5

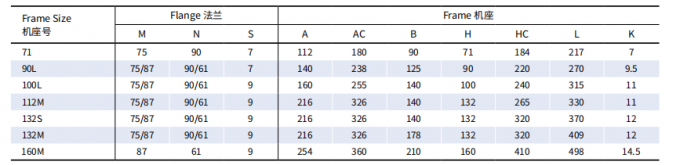

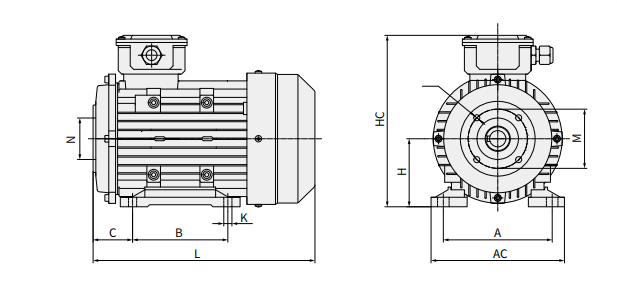

Specification
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 6
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 7
FRAME
POWER
KW HP
RPM
COSφ
P.F.
EFF.%
CAPACITOR
(UF)
VOL
AMPEREA
Single-Phase 4 Poles 3000Rpm 50Hz
711-4
0.25
0.35
1360
0.91
57
10
230
2.1
712-4
0.37
0.5
1380
0.94
65
16
230
2.6
90L1-4
1.5
2
1400
0.98
70
45
230
9.5
100L1-4
1.85
2.5
1390
0.97
68
55
230
12.2
100L2-4
2.2
3
1350
0.99
74
70
230
13.1
100L3-4
2.6
3.5
1350
0.96
74
80
230
17.5
112M1-4
3
4
1400
0.98
74
80
230
18.1
112M2-4
3.7
5
1410
0.96
76
100
230
22
Three-Phase 4 Poles 1500Rpm 50Hz
711-4
0.25
0.35
1370
0.73
64
400
0.8
712-4
0.37
0.5
1350
0.74
68
400
1.1
713-4
0.55
0.75
1350
0.75
66
400
1.6
90L1-4
1.5
2
1400
0.82
78
400
3.4
90L2-4
2.2
3
1400
0.79
77
400
5.4
90L3-4
2.6
3.5
1400
0.8
78
400
7.4
100L1-4
2.2
3
1400
0.8
81
400
5.1
100L2-4
3
4
1410
0.8
81
400
6.9
100L3-4
4
5.5
1420
0.8
82
400
9.4
100M1-4
4.4
6
1420
0.82
83
400
10
112M1-4
4
5.5
1420
0.8
83
400
9
112M2-4
5.5
7.5
1430
0.82
84
400
12.1
112M3-4
6.2
8.5
1425
0.82
84
400
13.5
112L-4
7
9.5
1430
0.8
85
400
13.8
132S1-4
5.5
7.5
1430
0.82
84
400
11.7
132S2-4
7.5
10
1430
0.84
84
400
15.4
132M1-4
9.2
12.5
1430
0.9
85
400
17.8
132M2-4
11
15
1430
0.9
87
400
21.3
132M3-4
12.5
17
1430
0.88
84
400
26
160M1-4
15
20
1450
0.86
89
400
29
160M2-4
18.5
25
1450
0.86
90
400
34

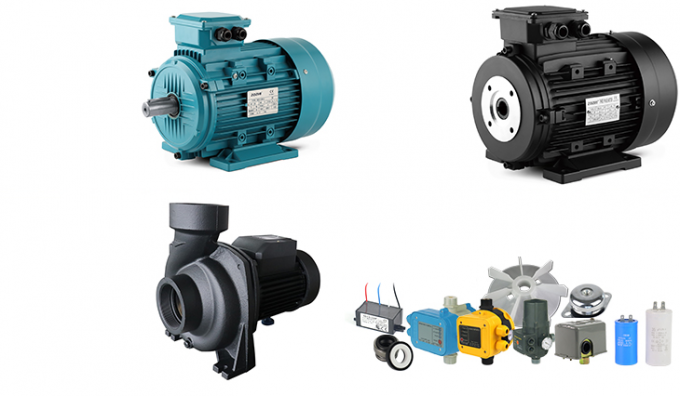

Other Products
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 8
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 9
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 10
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 11
Company Profile
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 12
Fuan Zhongzhi Pump Co., Ltd
Established in 2006, Fuan Zhongzhi Pump Co., Ltd. is a modern private enterprise specializing in the research, production,sales,and service of various pumps (peripheral, centrifugal, jet, deep well, sewage) and high-efficiency AC motors, alternators,and diesel generators. Zhongzhi pumps are used for shallow and deep well pumping, pipeline boosting, water tower boosting, garden and agricultural irrigation, and aquaculture drainage. Zhongzhi motors serve general driving purposes like household appliances, pumps, fans, and recording meters. Zhongzhi generators are widely applied in communication systems, data centers, mining, power, highways, engineering companies,financial systems, hotels, railways, military, airports, commercial buildings, hospitals, and factories. We have established a global service network with strategic partners, making our generator sets the preferred backup power choice for numerous hotels,buildings, and industrial enterprises. Zhongzhi products are popular in over 70 countries across Europe, America, the Middle East, Africa, and Southeast Asia. Guided by our motto "Solidarity, Exploration, Honesty, Faith," we aim to be a global leader in providing comprehensive and reliable solutions to improve the world.
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 13
Our Customer
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 14
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 15
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 16
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 17
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 18
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 19
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 20
FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 21
